กระบวนการผลิตถังไฟเบอร์กลาส
กระบวนการผลิตถังไฟเบอร์กลาส ผลิตโดยใช้เครื่องพันแบบเฉียง หรือ Filament Winding และออกแบบโดยใช้มาตรฐาน ASME RTP-1-2000 โดยอ้างอิงคุณสมบัติของวัสดุต่างๆที่ใช้ในการผลิต ใช้ มาตรฐาน ASTM D-3299 กระบวนการผลิตทุกขั้นตอน ควบคมโดยวิศวกรที่มีประสบการณ์นานกวา 10 ปี
Manufacturing of Fiberglass Tanks Made by the Filament Winding machine And designed under ASME RTP-1-2000 standard. For the reference properties of various materials used the ASTM D-3299 standard and each production step. Control by experienced engineers for more than 10 years.

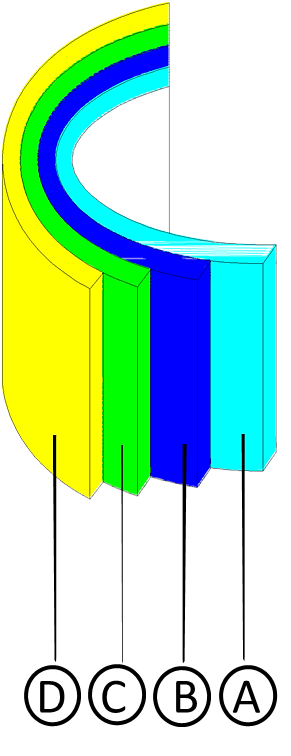

A– Primer Layer- the Resin-rich layer of chemical resistance vinyl ester is uniformly applied to an inner surface mat of fiberglass reinforcement. surfacing veil or nexus veil depending upon the customer’s products to be stored. | |
B– Corrosion Barrier – the Resin –rich layer of chemical resistance vinyl ester is uniformly applied with a chopped-strand matt layer of fiberglass. | |
C– Structure Layer- the filament-wound layer. Impregnated with polyester resin, is applied for highest circumferential strenght. The thickness of this layer are varies with tank dimension and specification of customer’s product. | |
D– Top-Coat Layer- The Resin-rich layer of chemical resistance vinyl ester is uniformly applied into an final surface of filament-wound layer an outer surface will be coated with UV protection resin can installation of out door application |

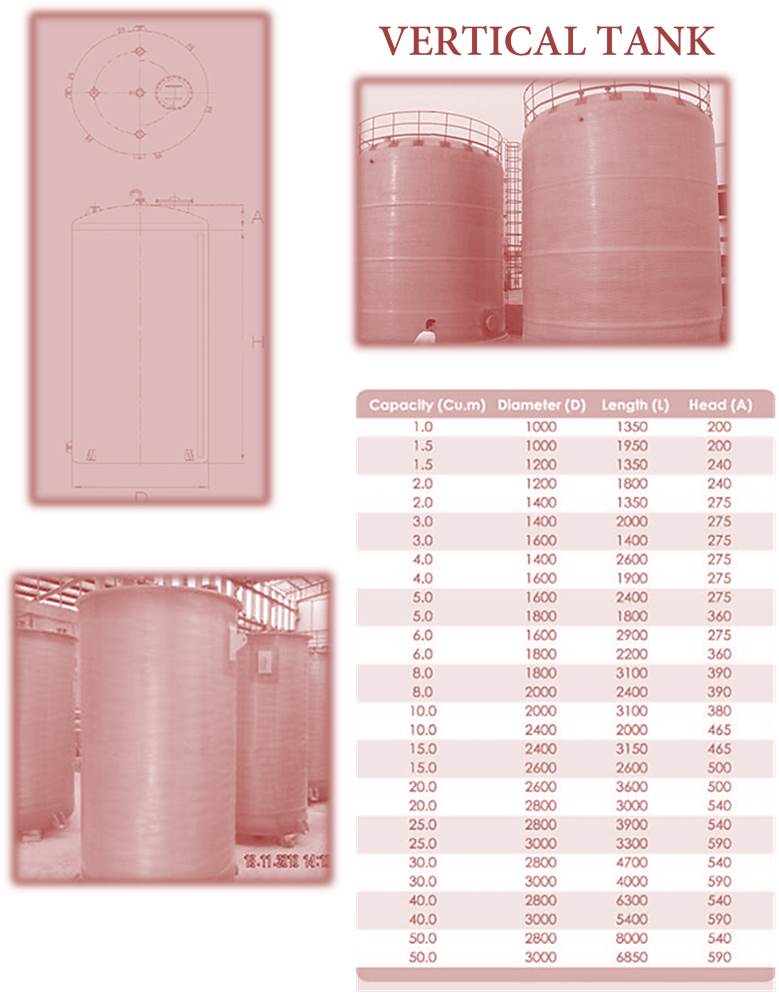

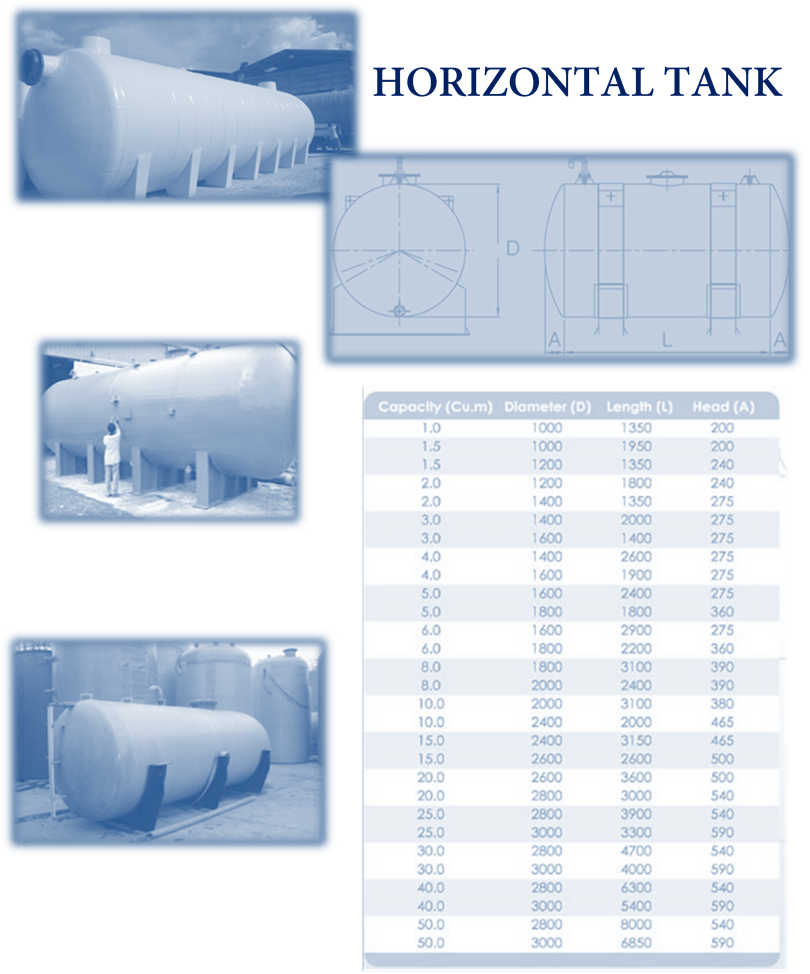

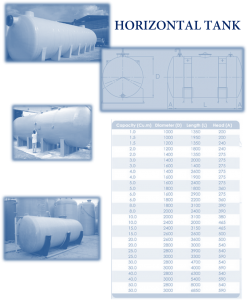

Horizontal Tank & Vertical Tank

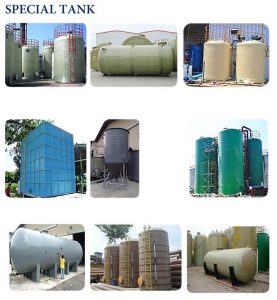

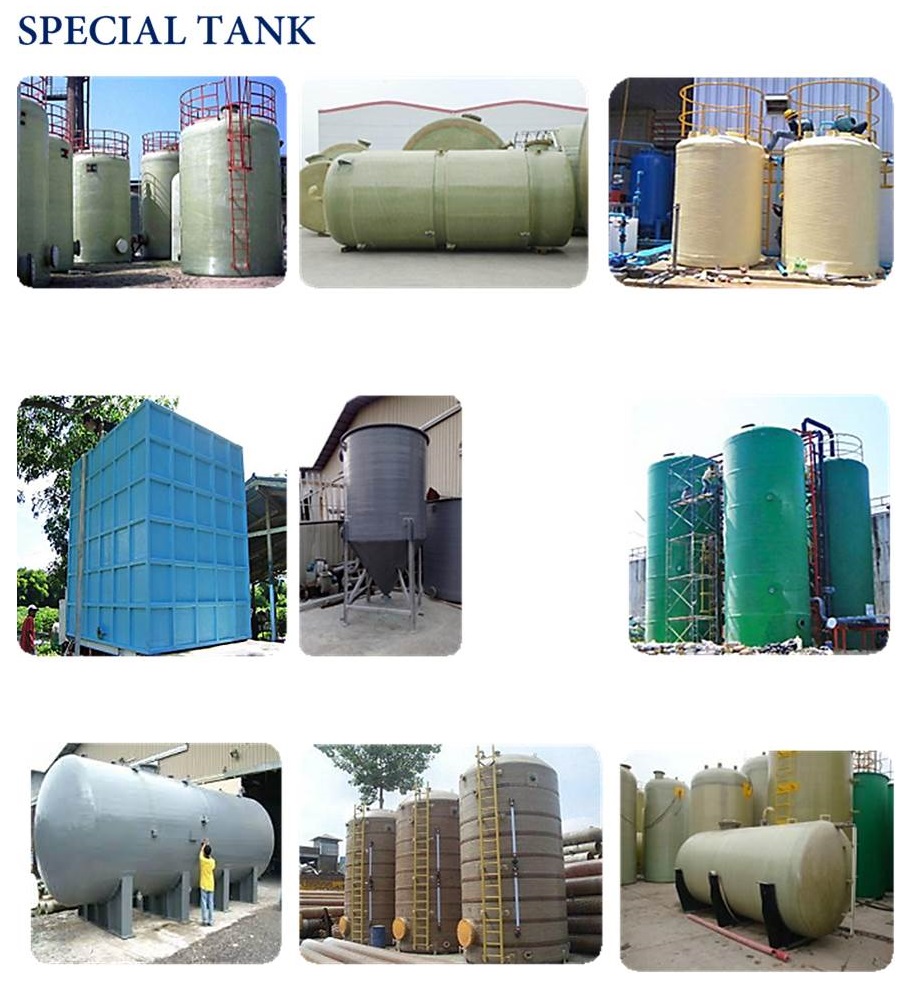

Special Tank & Steel Tank
ห้างหุ้นส่วนจำกัด เซิร์ฟ พลัส เราพร้อมสำรวจหน้างานร่วมวิเคราะห์ปัญหา และให้คำปรึกษาโดยทีมงานที่มีประสบการณ์ด้านนี้มากกว่า 15 ปี จึงเชี่ยวชาญด้านวิศวกรรมอย่างยิ่ง สนใจสอบถามรายละเอียดเพิ่มเติมได้ที่ 02-115-4600
